OVERVIEW
The Stage 7 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
FEATURES & BENEFITS
- 2.5" lift height
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
- APPLICATION NOTE #128: Gladiator Mojave Trim Requires 14Mm Misalignment Spacer Kit Part # 611070
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine.
- Ships In Multiple Boxes

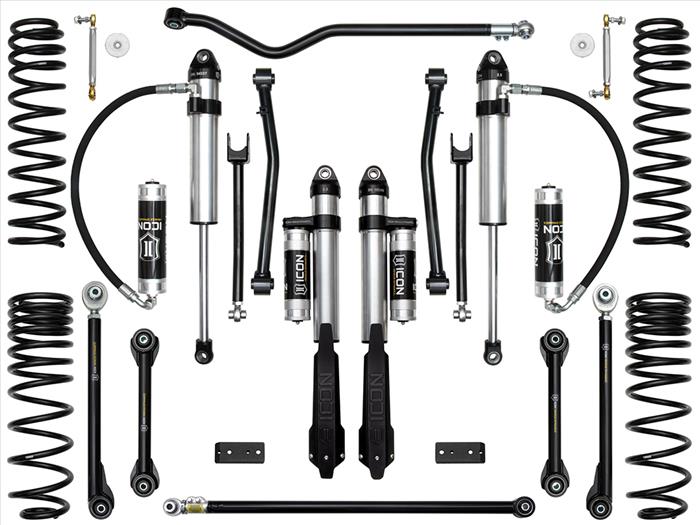

SYSTEM COMPONENTS:
- 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
- 22022 (QTY: 1) | 18-UP JL FRONT ADJ UPPER LINK KIT
- 22063T (QTY: 1) | 20-UP JT TUBULAR REAR ADJUSTABLE LOWER LINK KIT
- 22064T (QTY: 1) | 20-UP JT TUBULAR REAR UPPER LINK KIT
- 22025 (QTY: 1) | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
- 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
- 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
- 22062 (QTY: 1) | 20-UP JT REAR SWAY BAR RELOCATION KIT
- 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
- 22068 (QTY: 1) | 20-UP JT REAR ADJ TRACK BAR KIT
- 27821P (QTY: 1) | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR PAIR
- 27727P (QTY: 1) | 20-UP JT 1.5" REAR 2.5 VS PB PAIR
OVERVIEW
The Stage 7 ICON 2.5” Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5” lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, tubular steel fixed upper and adjustable lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35” tire. For those looking to run a 37” tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
FEATURES & BENEFITS
- 2.5" lift height
- Fits 35" tires (37" with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear tubular upper and lower links improve rear end articulation and allow for pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.5” Backspace / -6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 4.5” Backspace / -12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (37" x 12.50" with optional bump stop spacer kit PN: 22071)
- APPLICATION NOTE #128: Gladiator Mojave Trim Requires 14Mm Misalignment Spacer Kit Part # 611070
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: ICON’s advertised lift heights are based around a typical Jeep JT build which usually includes added weight of accessories such as heavier front bumper/winch. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
- TECH NOTE: Only compatible with models equipped with 3.6L V6 Pentastar engine.
- Ships In Multiple Boxes
SYSTEM COMPONENTS:
- 22021 (QTY: 1) | 18-UP JL/20-UP JT FRONT FIXED LOWER LINK KIT
- 22022 (QTY: 1) | 18-UP JL FRONT ADJ UPPER LINK KIT
- 22063T (QTY: 1) | 20-UP JT TUBULAR REAR ADJUSTABLE LOWER LINK KIT
- 22064T (QTY: 1) | 20-UP JT TUBULAR REAR UPPER LINK KIT
- 22025 (QTY: 1) | 18-23 JL 2.5"/20-23 JT 2" FRONT DUAL RATE SPRING KIT
- 22066 (QTY: 1) | 20-UP JT 1.5" REAR MULTI RATE SPRING KIT
- 22061 (QTY: 1) | 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
- 22062 (QTY: 1) | 20-UP JT REAR SWAY BAR RELOCATION KIT
- 22027 (QTY: 1) | 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
- 22068 (QTY: 1) | 20-UP JT REAR ADJ TRACK BAR KIT
- 27821P (QTY: 1) | 20-UP JT/18-UP JL 2.5" FRONT 2.5 VS RR PAIR
- 27727P (QTY: 1) | 20-UP JT 1.5" REAR 2.5 VS PB PAIR
ICON Stage 7 Suspension Kit with Tubular UCA for 2020-Present Jeep Gladiator JT
SKU: K22107T
- Regular price
- $4,864.40
- Sale price
- $4,864.40
