Description

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #17: These Are Stand-Alone Kits And Are Not To Be Used In Conjunction With Any Other Aftermarket Kits
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
  • TECH NOTE: Not compatible with TRD rear sway bar kit
  • Ships in multiple boxes

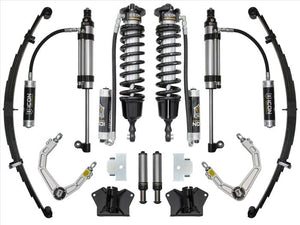

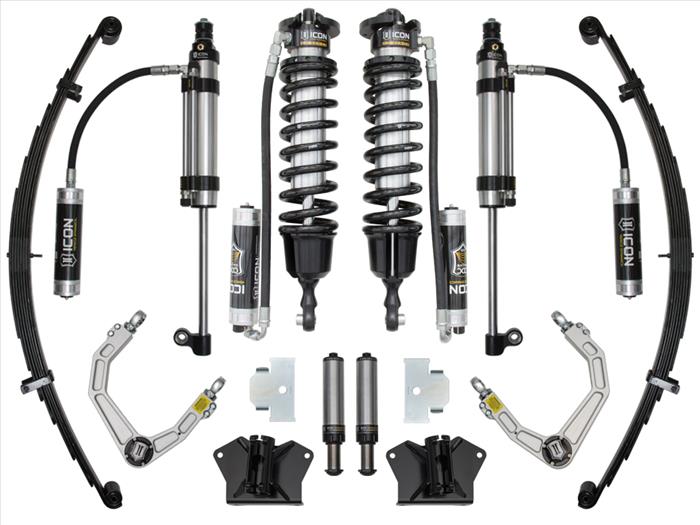

SYSTEM COMPONENTS:



  • 58755 (QTY: 1) | 07-21 TUNDRA 3.0 VS RR CDCV COILOVER KIT
  • 58560DJ (QTY: 1) | 07-21 TUNDRA BILLET UCA DJ KIT

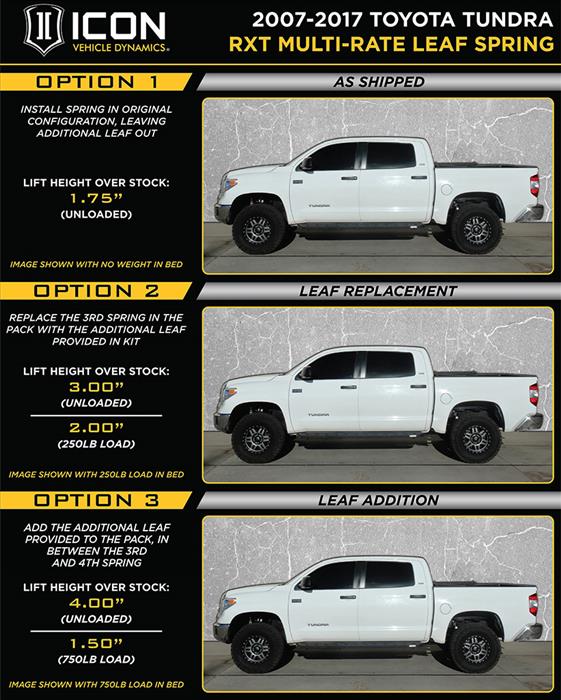

  • 158509 (QTY: 2) | 07-21 TUNDRA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
  • 52050 (QTY: 1) | TOYOTA REAR 8.0" U-BOLT KIT
  • 59923P (QTY: 1) | 07-21 TUNDRA RXT REAR 2.5 OMEGA RR PAIR
  • 56108 (QTY: 1) | 07-21 TUNDRA REAR HYD BUMP STOP KIT
Description

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #17: These Are Stand-Alone Kits And Are Not To Be Used In Conjunction With Any Other Aftermarket Kits
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
  • TECH NOTE: Not compatible with TRD rear sway bar kit
  • Ships in multiple boxes

SYSTEM COMPONENTS:



  • 58755 (QTY: 1) | 07-21 TUNDRA 3.0 VS RR CDCV COILOVER KIT
  • 58560DJ (QTY: 1) | 07-21 TUNDRA BILLET UCA DJ KIT
  • 158509 (QTY: 2) | 07-21 TUNDRA MULTI RATE RXT LEAF PACK W/ ADD IN LEAF
  • 52050 (QTY: 1) | TOYOTA REAR 8.0" U-BOLT KIT
  • 59923P (QTY: 1) | 07-21 TUNDRA RXT REAR 2.5 OMEGA RR PAIR
  • 56108 (QTY: 1) | 07-21 TUNDRA REAR HYD BUMP STOP KIT
by Icon Vehicle Dynamics

ICON Stage 3 3.0 Coilover Suspension Kit for 2007-2021 Toyota Tundra

SKU: K53167

$9,155.78
$9,155.78
Shipping calculated at checkout.
