Description

OVERVIEW

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 2 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. This ICON Stage 2 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use.

FEATURES & BENEFITS

  • 3” lift height
  • Approximately 40% increased front wheel travel over stock
  • Approximately 35% increased rear wheel travel over stock
  • ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
  • Vehicle specific tuned 2.5 Series front and rear shocks offer superior shock damping and control
  • 2.5 body remote reservoir shocks with 7/8" shafts
  • 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • 6061 aircraft grade aluminum CNC machined components
  • 100% bolt-on design means no drilling, cutting or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 4.63” Backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #71: Any Kit With Part #57802P/CP In It With Stock Rear Coil Springs Vehicle Will Ride In Bump Zone Of Shock. Stock Or Some Aftermarket Coil Springs May Come Unseated At Full Droop.
  • APPLICATION NOTE #150: Shocks Are Fully Serviceable
  • TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

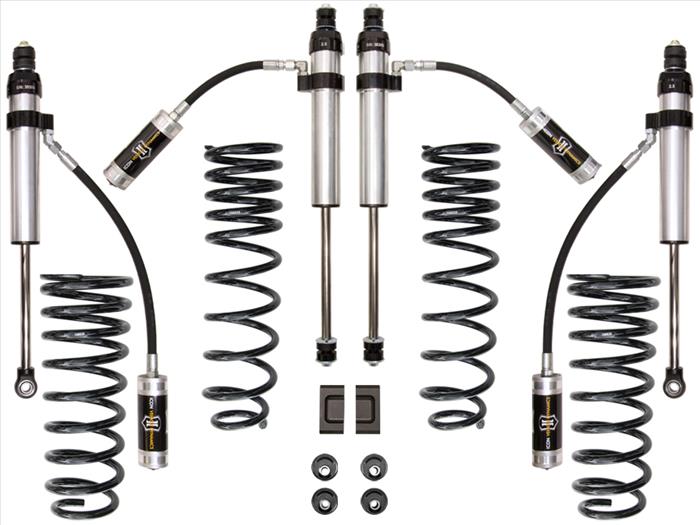

SYSTEM COMPONENTS:



  • 57801P (QTY: 1) | 91-97 LAND CRUISER 80 0-3" FRONT 2.5 VS RR PAIR
  • 53007 (QTY: 1) | 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT
  • 53008 (QTY: 1) | 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT
  • 53009 (QTY: 1) | 93-97 LAND CRUISER BRAKE LINE KIT +3"
  • 53005 (QTY: 1) | 91-97 LAND CRUISER 3" FRONT DUAL RATE SPRING KIT
  • 53006 (QTY: 1) | 91-97 LAND CRUISER 3" REAR DUAL RATE SPRING KIT
  • 57802P (QTY: 1) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR PAIR
Description

OVERVIEW

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 2 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.5 Aluminum Series remote reservoir shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. The 2.5" remote reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. This ICON Stage 2 System is the perfect suspension system for drivers seeking a quality on-road ride with outstanding off-road performance under extreme use.

FEATURES & BENEFITS

  • 3” lift height
  • Approximately 40% increased front wheel travel over stock
  • Approximately 35% increased rear wheel travel over stock
  • ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
  • Vehicle specific tuned 2.5 Series front and rear shocks offer superior shock damping and control
  • 2.5 body remote reservoir shocks with 7/8" shafts
  • 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • 6061 aircraft grade aluminum CNC machined components
  • 100% bolt-on design means no drilling, cutting or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5 with 4.63” Backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #71: Any Kit With Part #57802P/CP In It With Stock Rear Coil Springs Vehicle Will Ride In Bump Zone Of Shock. Stock Or Some Aftermarket Coil Springs May Come Unseated At Full Droop.
  • APPLICATION NOTE #150: Shocks Are Fully Serviceable
  • TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

SYSTEM COMPONENTS:



  • 57801P (QTY: 1) | 91-97 LAND CRUISER 80 0-3" FRONT 2.5 VS RR PAIR
  • 53007 (QTY: 1) | 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT
  • 53008 (QTY: 1) | 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT
  • 53009 (QTY: 1) | 93-97 LAND CRUISER BRAKE LINE KIT +3"
  • 53005 (QTY: 1) | 91-97 LAND CRUISER 3" FRONT DUAL RATE SPRING KIT
  • 53006 (QTY: 1) | 91-97 LAND CRUISER 3" REAR DUAL RATE SPRING KIT
  • 57802P (QTY: 1) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR PAIR

ICON Stage 2 Suspension Kit for Toyota 80 Series Land Cruiser

SKU: K53092

Regular price
$3,274.65
Sale price
$3,274.65
Regular price
Shipping calculated at checkout.
