OVERVIEW
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.
FEATURES & BENEFITS
- Vehicle specific tuned 2.5" front and rear shocks for superior shock damping and control
- Remote reservoirs provided for extended shock damping performance
- 6061 Aircraft grade aluminum CNC machined components
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- No cutting or welding necessary for install
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock.
- APPLICATION NOTE #71: Any kit with part# 57802P/CP in it with stock rear coil springs vehicle will ride in bump zone of shock. Stock or some aftermarket coil springs may come unseated at full droop.
- APPLICATION NOTE #73: Aftermarket control arm required for clearance
- APPLICATION NOTE #97: Not compatible with AHC equipped models
SYSTEM COMPONENTS:
- 57807P (QTY: 1) | 98-07 LAND CRUISER 100 SERIES 0-3" FRONT 2.5 VS RR PAIR
- 57802P (QTY: 1) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR PAIR
OVERVIEW
The 1998 - 2007 Toyota Land Cruiser 100 Series has a compact torsion bar IFS front suspension, and requires a lot of work to be done in a small space. When lift is added via torsion bar adjustment there is even more spring energy that must be absorbed to adequately control the vehicle. Keeping this in mind, those looking to achieve 0-3" of lift (aftermarket upper control required) can install the Stage 2 shock system for maximum suspension travel and performance. ICON engineers have developed a unique 2.5” diameter shock system, with remote reservoirs front and rear, that can handle these demands. 2.5 Aluminum Series reservoir shocks front and rear ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. With a lower spherical rod end bearing and heavy-duty upper stem bushings, deflection is kept to a minimum for precise control of the suspension even under high loads.
FEATURES & BENEFITS
- Vehicle specific tuned 2.5" front and rear shocks for superior shock damping and control
- Remote reservoirs provided for extended shock damping performance
- 6061 Aircraft grade aluminum CNC machined components
- 2.5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK rod end bearings for extended longevity and minimal deflection
- No cutting or welding necessary for install
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #58: Kits consist of shocks only. Additional components required to achieve desired lift height over stock.
- APPLICATION NOTE #71: Any kit with part# 57802P/CP in it with stock rear coil springs vehicle will ride in bump zone of shock. Stock or some aftermarket coil springs may come unseated at full droop.
- APPLICATION NOTE #73: Aftermarket control arm required for clearance
- APPLICATION NOTE #97: Not compatible with AHC equipped models
SYSTEM COMPONENTS:
- 57807P (QTY: 1) | 98-07 LAND CRUISER 100 SERIES 0-3" FRONT 2.5 VS RR PAIR
- 57802P (QTY: 1) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.5 VS RR PAIR

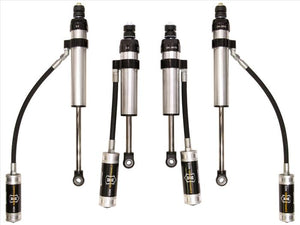

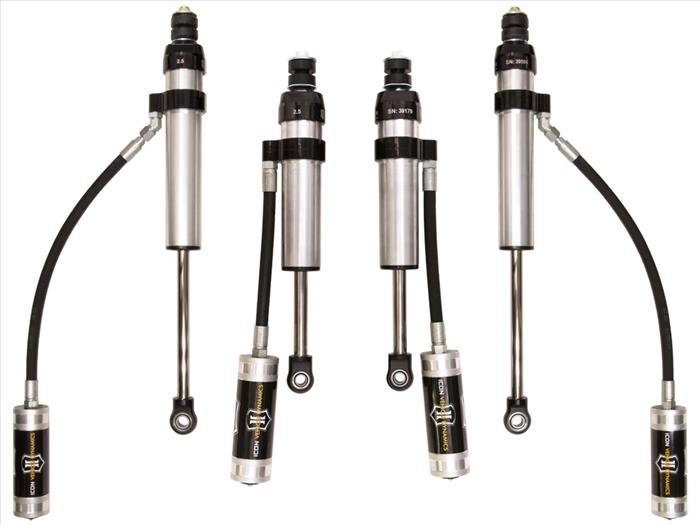

ICON Stage 2 Suspension Kit for Toyota 100 Series Land Cruiser
SKU: K53082
- Regular price
- $2,209.90
- Sale price
- $2,209.90
