OVERVIEW
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir ICON 2.0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
FEATURES & BENEFITS
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- ICON engineered coil springs
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
- Simple, bolt-on installation
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #109: 2016-2023 Tacoma Llft range Is 0-2.75”
- APPLICATION NOTE #110: Trimming required for recommended tire size
- APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 can be installed to increase preload .25” beyond maximum
- TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
- TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock

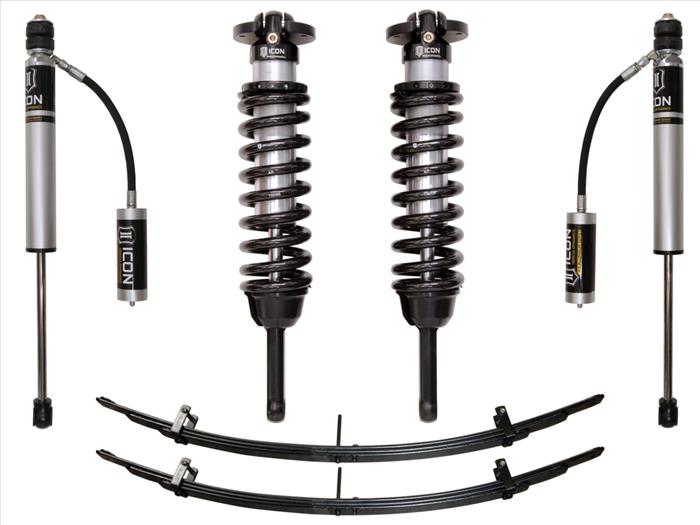

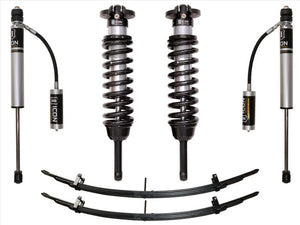

SYSTEM COMPONENTS:
- 58630 (QTY: 1) | 05-23 TACOMA 2.5 VS IR COILOVER KIT
- 51100 (QTY: 1) | 96-23 TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
- 56503R (QTY: 2) | 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS RR
OVERVIEW
ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. Remote reservoir ICON 2.0 Aluminum Series rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The included rear Add-A-Leaf Kit Installs in place of the factory overload leaves and effectively lowers the rear spring rate by approximately 10% for a more compliant ride while also providing 1.5" of rear lift over stock. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
FEATURES & BENEFITS
- Increased wheel travel and ride quality over stock
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Adjustable coilovers provide up to 3.5" of front lift height on 2005-2015 models and up to 2.75" on 2016-2023 models
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK Rod End bearings for extended longevity and minimal deflection
- ICON engineered coil springs
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
- Add-A-Leaf Kit replaces OE overload leaf spring for more compliant ride quality and 1.5" of rear lift
- Simple, bolt-on installation
DOWNLOAD INSTALLATION GUIDE
TECH INFO:
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #109: 2016-2023 Tacoma Llft range Is 0-2.75”
- APPLICATION NOTE #110: Trimming required for recommended tire size
- APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 can be installed to increase preload .25” beyond maximum
- TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
- TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock and rear lift height of 1" over stock
SYSTEM COMPONENTS:
- 58630 (QTY: 1) | 05-23 TACOMA 2.5 VS IR COILOVER KIT
- 51100 (QTY: 1) | 96-23 TACOMA/00-06 TUNDRA 1.5" ADD-A-LEAF KIT
- 56503R (QTY: 2) | 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS RR
ICON Stage 2 Coilover Suspension Kit for 2005-2023 Toyota Tacoma
SKU: K53002
