Description

OVERVIEW

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.

FEATURES & BENEFITS

  • 3” lift height
  • Approximately 40% increased front wheel travel over stock
  • Approximately 35% increased rear wheel travel over stock
  • ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
  • Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
  • 2.0 aluminum body IFP shocks with 5/8" shaft
  • Corrosion resistant anodized aluminum shock body
  • 6061 aircraft grade aluminum CNC machined components
  • 100% bolt-on design means no drilling, cutting or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #150: Shocks Are Fully Serviceable
  • TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

SYSTEM COMPONENTS:



  • 56509 (QTY: 2) | 91-97 LAND CRUISER 80 0-3" FRONT 2.0 VS IR
  • 53007 (QTY: 1) | 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT
  • 53008 (QTY: 1) | 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT
  • 53009 (QTY: 1) | 93-97 LAND CRUISER BRAKE LINE KIT +3"
  • 53005 (QTY: 1) | 91-97 LAND CRUISER 3" FRONT DUAL RATE SPRING KIT
  • 53006 (QTY: 1) | 91-97 LAND CRUISER 3" REAR DUAL RATE SPRING KIT
  • 56510 (QTY: 2) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.0 VS IR
Description

OVERVIEW

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.

FEATURES & BENEFITS

  • 3” lift height
  • Approximately 40% increased front wheel travel over stock
  • Approximately 35% increased rear wheel travel over stock
  • ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
  • Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
  • 2.0 aluminum body IFP shocks with 5/8" shaft
  • Corrosion resistant anodized aluminum shock body
  • 6061 aircraft grade aluminum CNC machined components
  • 100% bolt-on design means no drilling, cutting or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #150: Shocks Are Fully Serviceable
  • TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.

SYSTEM COMPONENTS:



  • 56509 (QTY: 2) | 91-97 LAND CRUISER 80 0-3" FRONT 2.0 VS IR
  • 53007 (QTY: 1) | 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT
  • 53008 (QTY: 1) | 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT
  • 53009 (QTY: 1) | 93-97 LAND CRUISER BRAKE LINE KIT +3"
  • 53005 (QTY: 1) | 91-97 LAND CRUISER 3" FRONT DUAL RATE SPRING KIT
  • 53006 (QTY: 1) | 91-97 LAND CRUISER 3" REAR DUAL RATE SPRING KIT
  • 56510 (QTY: 2) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.0 VS IR

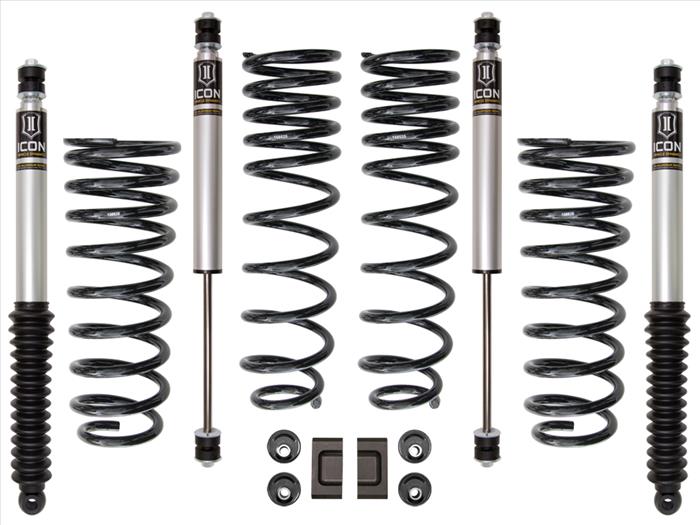

ICON Stage 1 Suspension Kit for Toyota 80 Series Land Cruiser

SKU: K53091

Regular price
$1,784.55
Sale price
$1,784.55
Regular price
Shipping calculated at checkout.
