Description

OVERVIEW

The ICON Vehicle Dynamics Stage 1 EXP suspension system for the 2005-2023 Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 33" tires. This system features the innovative new 2.5 EXP Series coilover shocks along with our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.

This Stage 1 system features the 2005-2023 Toyota Tacoma EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0-2” of suspension lift, custom-tuned performance and maximum travel all in an economical package.

The included sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer’s sway bar clearance from the EXP coilovers. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

Rounding out the Stage 1 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2005-2023 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.

FEATURES & BENEFITS

  • Vehicle specific design for 2005-2023 Toyota Tacoma
  • 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
  • Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
  • Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
  • Allows for full wheel travel without overstressing OE components
  • 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #110: Trimming required for recommended tire size
  • APPLICATION NOTE #144: Not compatible with TRD Pro
  • TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
  • TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock

SYSTEM COMPONENTS:



  • 58632 (QTY: 2) | 05-23 TACOMA FRONT 2.5 EXP COILOVER
  • 611030 (QTY: 1) | 05-UP TACO/07-09 FJ SWAYBAR RELOCATION KIT
  • 56503 (QTY: 2) | 05-23 TACOMA 4WD 0-1.5" REAR 2.0 VS NR
Description

OVERVIEW

The ICON Vehicle Dynamics Stage 1 EXP suspension system for the 2005-2023 Toyota Tacoma represents our entry level performance suspension system providing improved on- and off-road performance as well as front-end lift and leveling for a proper stance and fitment of up to 33" tires. This system features the innovative new 2.5 EXP Series coilover shocks along with our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.

This Stage 1 system features the 2005-2023 Toyota Tacoma EXP Series front shock absorbers that combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Tacoma’s factory coil spring and other components. EXP bridges the gap between spacer lifts and threaded bodied coilovers providing 0-2” of suspension lift, custom-tuned performance and maximum travel all in an economical package.

The included sway bar relocation brackets help minimize sway bar link bind through the suspension travel range and offer’s sway bar clearance from the EXP coilovers. This helps the suspension move more freely and allows for the full range of wheel travel without overstressing any OE components.

Rounding out the Stage 1 EXP suspension system are V.S. 2.0 Aluminum Series rear shocks specially tailored for the 2005-2023 Tacoma. The 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Their pairing with the ICON 2.5 EXP Series front coilovers results in balanced vehicle control from front to rear and an excellent overall driving experience for your Tacoma.

FEATURES & BENEFITS

  • Vehicle specific design for 2005-2023 Toyota Tacoma
  • 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
  • Adjustable front ride heights from 0-2” of front lift over stock with the use of snap ring
  • Included sway bar relocation brackets reduce ensure sway bar clearance from EXP coilovers
  • Allows for full wheel travel without overstressing OE components
  • 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
  • All ICON shock absorbers are fully rebuildable and re-tunable

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Minor fender trimming may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #110: Trimming required for recommended tire size
  • APPLICATION NOTE #144: Not compatible with TRD Pro
  • TECH NOTE: Not compatible with 2005-2015 rear wheel drive Tacomas with 5 wheel lug studs
  • TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock

SYSTEM COMPONENTS:



  • 58632 (QTY: 2) | 05-23 TACOMA FRONT 2.5 EXP COILOVER
  • 611030 (QTY: 1) | 05-UP TACO/07-09 FJ SWAYBAR RELOCATION KIT
  • 56503 (QTY: 2) | 05-23 TACOMA 4WD 0-1.5" REAR 2.0 VS NR

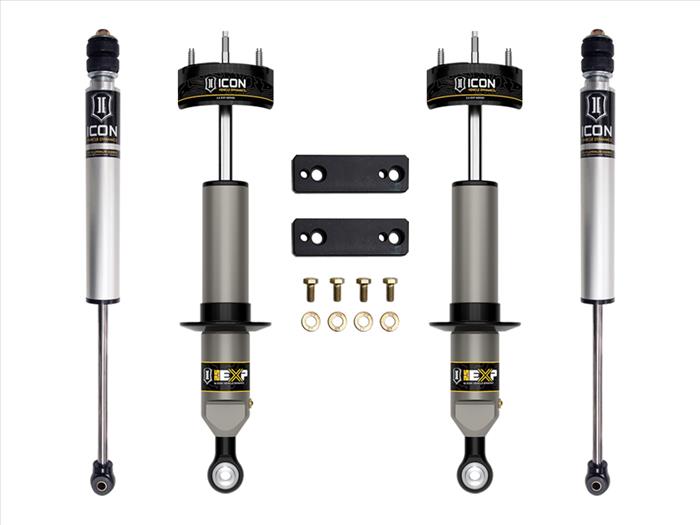

ICON Stage 1 EXP Suspension Kit for 2005-2023 Toyota Tacoma

SKU: K53220

Regular price
$1,423.75
Sale price
$1,423.75
Regular price
Shipping calculated at checkout.
