Description

OVERVIEW

ICON Vehicle Dynamics 2019-2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

FEATURES & BENEFITS

  • Height-adjustable coilovers provide a range of 0-3.5” of front lift height
  • Fits 2WD & 4WD applications
  • Increased lift height allows for fitment of larger and more aggressive tires
  • Up to 25% increase in front wheel travel over stock
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Corrosion resistant anodized shock body with 5/8″ shaft (2.0 Aluminum Series shocks)
  • Corrosion resistant CAD plated shock body with 7/8″ shaft (2.5 Series shocks)
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Shocks are fully rebuildable and revalvable
  • Direct bolt-in design makes for a simple and straightforward installation
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
  • TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
  • TECH NOTE: Not compatible with Ranger Raptor
  • TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock.

SYSTEM COMPONENTS:



  • 91250 (QTY: 1) | 19-23 RANGER 2.5 VS IR COILOVER KIT
  • 96519 (QTY: 2) | 19-23 RANGER 0-1.5" REAR 2.0 VS NR
Description

OVERVIEW

ICON Vehicle Dynamics 2019-2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

FEATURES & BENEFITS

  • Height-adjustable coilovers provide a range of 0-3.5” of front lift height
  • Fits 2WD & 4WD applications
  • Increased lift height allows for fitment of larger and more aggressive tires
  • Up to 25% increase in front wheel travel over stock
  • ICON shocks feature vehicle specific tune for superior performance and ride quality
  • Corrosion resistant anodized shock body with 5/8″ shaft (2.0 Aluminum Series shocks)
  • Corrosion resistant CAD plated shock body with 7/8″ shaft (2.5 Series shocks)
  • FK Rod End bearings provide extended longevity and minimal deflection
  • Shocks are fully rebuildable and revalvable
  • Direct bolt-in design makes for a simple and straightforward installation
  • Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
  • TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
  • TECH NOTE: Not compatible with Ranger Raptor
  • TECH NOTE: Included rear shocks are compatible with 0-1.5" of rear lift over stock.

SYSTEM COMPONENTS:



  • 91250 (QTY: 1) | 19-23 RANGER 2.5 VS IR COILOVER KIT
  • 96519 (QTY: 2) | 19-23 RANGER 0-1.5" REAR 2.0 VS NR

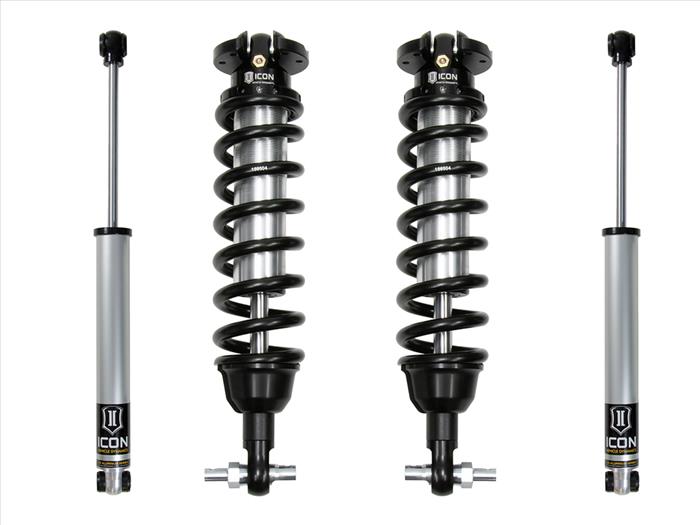

ICON Stage 1 Coilover Suspension Kit for 2019+ Ford Ranger

SKU: K93201

Regular price
$1,982.35
Sale price
$1,982.35
Regular price
Shipping calculated at checkout.
