Description

OVERVIEW

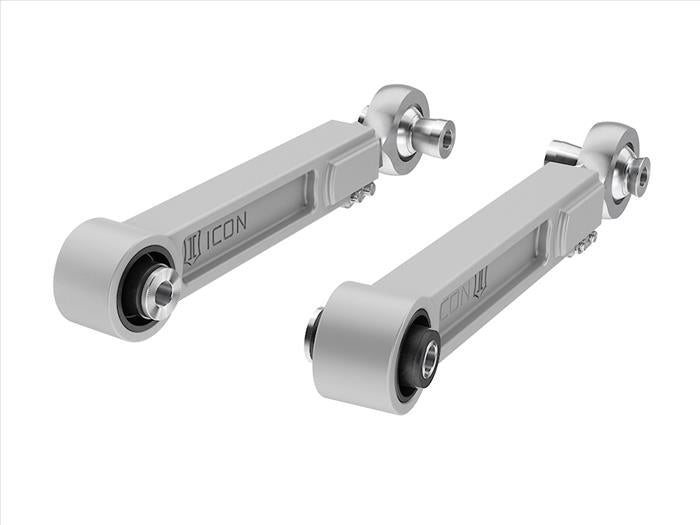

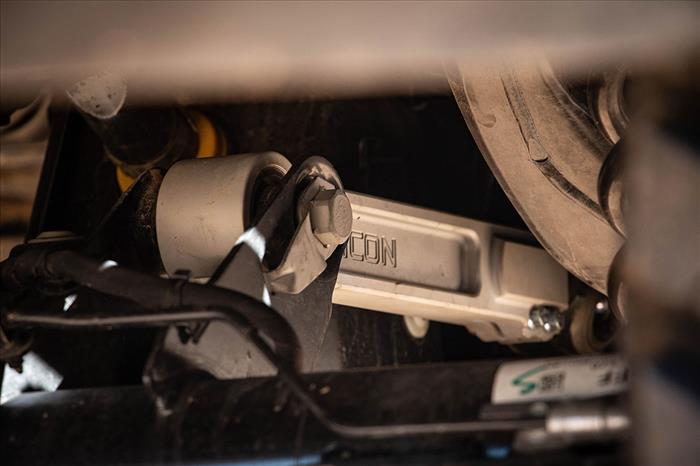

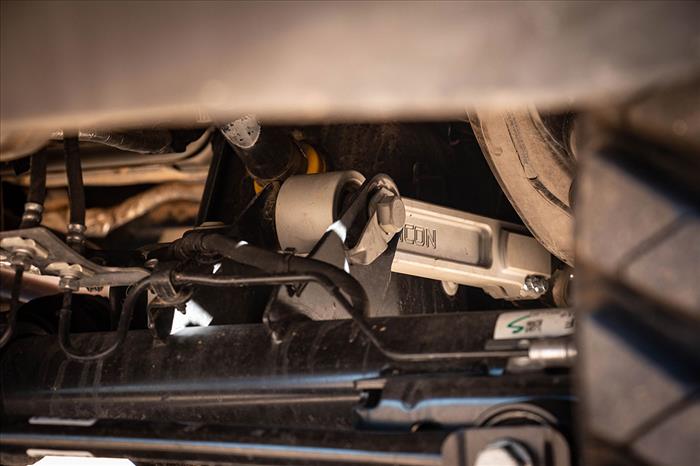

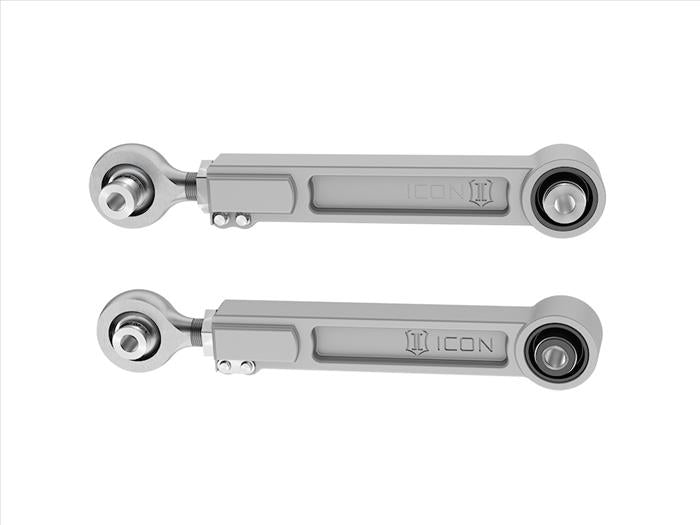

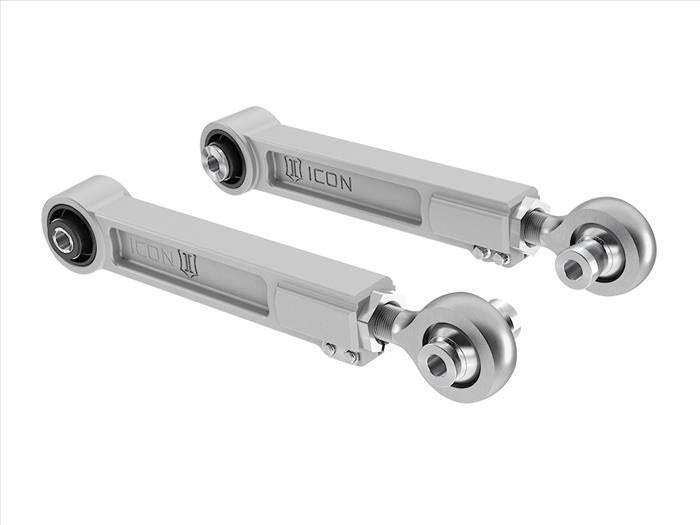

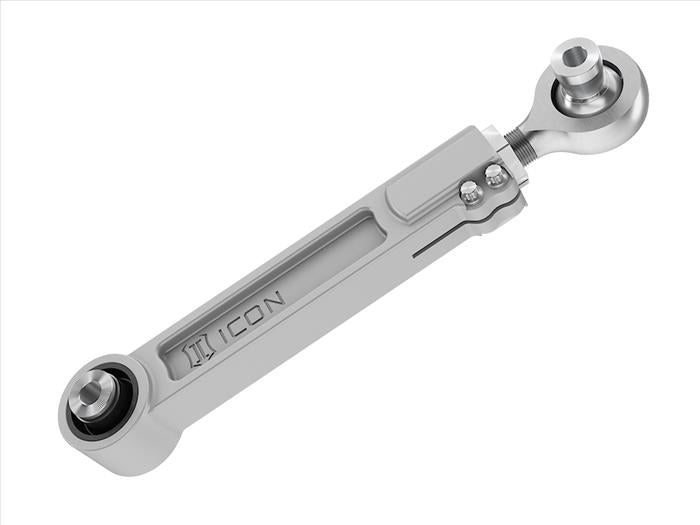

ICON’s billet aluminum rear upper link arms for the 2021-2023 Ford Bronco are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

FEATURES & BENEFITS

  • On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
  • Vehicle specific design for increased fuel tank clearance and maximum articulation
  • CNC machined 6061 aluminum construction
  • Large FK Bearing JMX16T PTFE-lined rod ends
  • Maintenance free, dual durometer bushings for maximum angularity and noise isolation
  • Covered by ICON’s Limited Lifetime Warranty

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • TECH NOTE: Not compatible with Bronco Raptor
Description

OVERVIEW

ICON’s billet aluminum rear upper link arms for the 2021-2023 Ford Bronco are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

FEATURES & BENEFITS

  • On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
  • Vehicle specific design for increased fuel tank clearance and maximum articulation
  • CNC machined 6061 aluminum construction
  • Large FK Bearing JMX16T PTFE-lined rod ends
  • Maintenance free, dual durometer bushings for maximum angularity and noise isolation
  • Covered by ICON’s Limited Lifetime Warranty

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • TECH NOTE: Not compatible with Bronco Raptor

ICON Billet Rear Upper Trailing Arm Kit for 2021+ Ford Bronco

SKU: 44100

Regular price
$999.95
Sale price
$999.95
Regular price
Shipping calculated at checkout.
