Description

OVERVIEW

The 200 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all of the sophistication it is still a very capable vehicle that sees heavy use both on and off-road worldwide. While the 200 Series has exceptional ride characteristics in stock form, it is clear that the suspension is in need of a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and is proud to re-introduce several suspension systems that drastically increase the overall ability of the 2008-UP Toyota Land Cruiser.

FEATURES & BENEFITS

  • Increased wheel travel and ride quality over stock
  • Improved vehicle dynamics and decreased body roll
  • Height adjustable coilovers provide 2.5-3.5" of lift height
  • ICON engineered dual rate rear coil springs

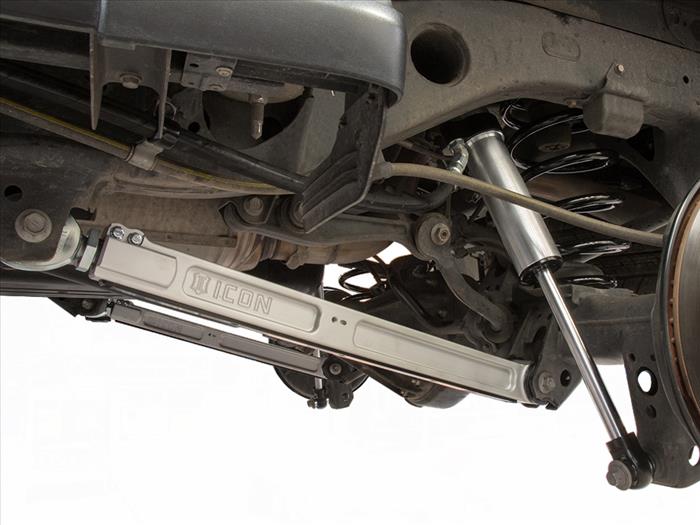

  • Billet Aluminum rear lower links offer on-vehicle pinion angle adjustment
  • Vehicle-specific tuned front and rear shocks provide superior damping and control
  • Corrosion resistant CAD plated coilover shock bodies with 1" shafts
  • 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
  • CDCV technology allows for quick and easy compression damping adjustment without the need for tools
  • Shocks are fully rebuildable and revalveable
  • Bolt-on design means no cutting or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 34" x 10.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #35: Remote Reservoir Mounting Brackets May Interfere With Aftermarket Bumper Mounts / Windshield Washer Bottles
  • APPLICATION NOTE #46: Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment.
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #111: Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
  • Ships in multiple boxes

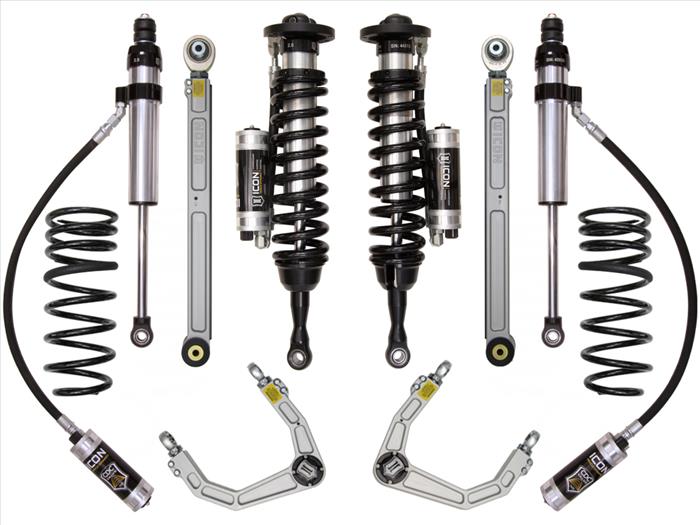

SYSTEM COMPONENTS:



  • 58765 (QTY: 1) | 08-UP LC 200 3.0 VS RR CDCV CO KIT
  • 58570DJ (QTY: 1) | 08-UP LC 200 BILLET UCA DJ KIT
  • 57825CP (QTY: 1) | 08-UP LC 200 0-2" REAR 2.5 VS RR CDCV PAIR
  • 52750 (QTY: 1) | 08-UP LC 200 1.75" DUAL RATE REAR SPRING KIT
  • 54000 (QTY: 1) | 07-14 FJ/03-23 4RNR/08-21 LC 200/03-23 GX BILLET LOWER TRAILING ARM KIT
