Description

OVERVIEW

ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2022 GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

FEATURES & BENEFITS

  • Fits 2WD and 4WD models
  • Compatible with diesel models
  • 25% increase in wheel travel over stock
  • Improved ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Height-adjustable coilovers offer 1.75-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
  • 100% Bolt-on system - no drilling or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: Not compatible with Colorado ZR2
  • TECH NOTE: Canyon AT4 front lift height range is .75-2" over stock
  • TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock

SYSTEM COMPONENTS:



  • 71010 (QTY: 1) | 15-22 COLORADO 2.5 VS IR COILOVER KIT
  • 76550 (QTY: 2) | 15-23 GM CANYON/COLORADO 0-2" REAR 2.0 VS IR
Description

OVERVIEW

ICON engineers’ primary focus for the GM Colorado / Canyon was to increase wheel travel and damping ability to provide outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform’s suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 1 system includes vehicle specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 1.75-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2015-2022 GM Colorado/Canyon Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

FEATURES & BENEFITS

  • Fits 2WD and 4WD models
  • Compatible with diesel models
  • 25% increase in wheel travel over stock
  • Improved ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Height-adjustable coilovers offer 1.75-3" of lift height
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts
  • 100% Bolt-on system - no drilling or welding necessary for install

DOWNLOAD INSTALLATION GUIDE

TECH INFO:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • TECH NOTE: Not compatible with Colorado ZR2
  • TECH NOTE: Canyon AT4 front lift height range is .75-2" over stock
  • TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock

SYSTEM COMPONENTS:



  • 71010 (QTY: 1) | 15-22 COLORADO 2.5 VS IR COILOVER KIT
  • 76550 (QTY: 2) | 15-23 GM CANYON/COLORADO 0-2" REAR 2.0 VS IR

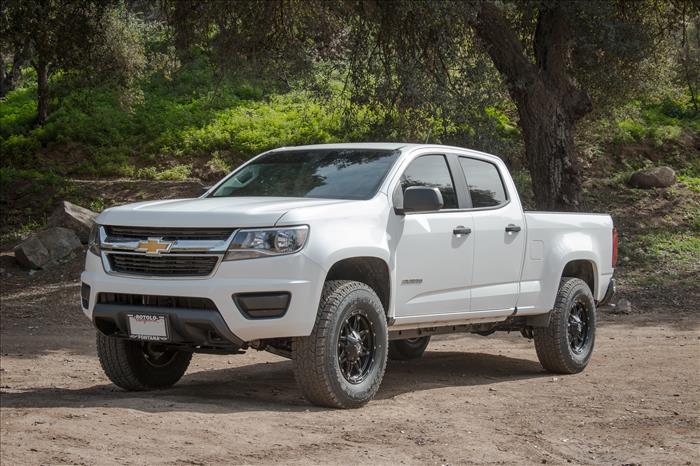

ICON Stage 1 Coilover Suspension Kit for 2015-2022 GM Canyon/Colorado

SKU: K73051

Regular price
$1,893.65
Sale price
$1,893.65
Regular price
Shipping calculated at checkout.
